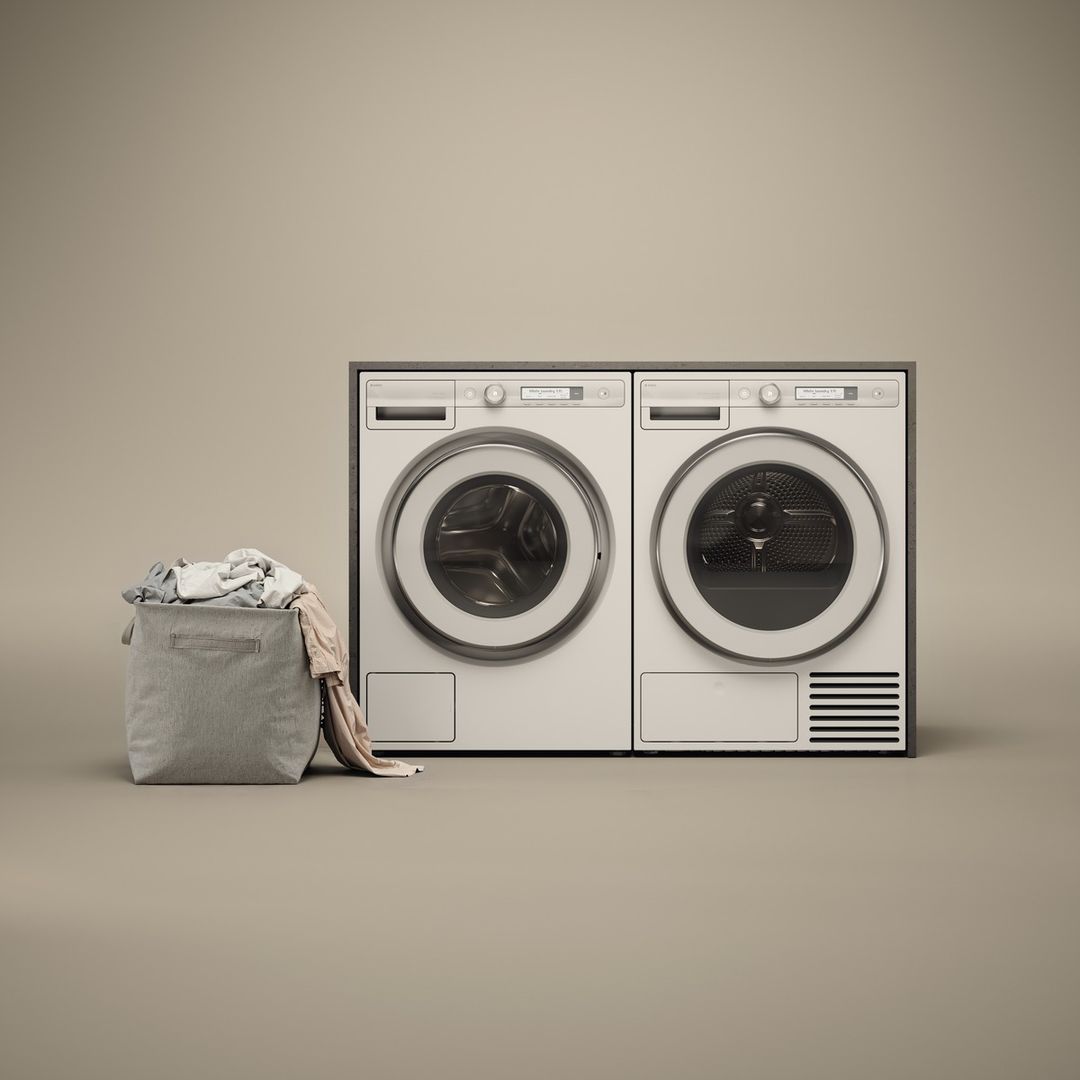

ASKO Steel Seal Washing Machine 11KG
ASKO W3114CXLW is a washing machine designed in Sweden and with extra robust construction for a trouble-free everyday life for many years. It has an 11 kg load capacity and 15 programs for easy and efficient washing. The machine is extra hygienic thanks to Steel Seal™ and with Quattro Construction™ 2.0 you get a quiet run and minimal vibrations even when the machine spins at the maximum speed of 1400 rpm.
Description

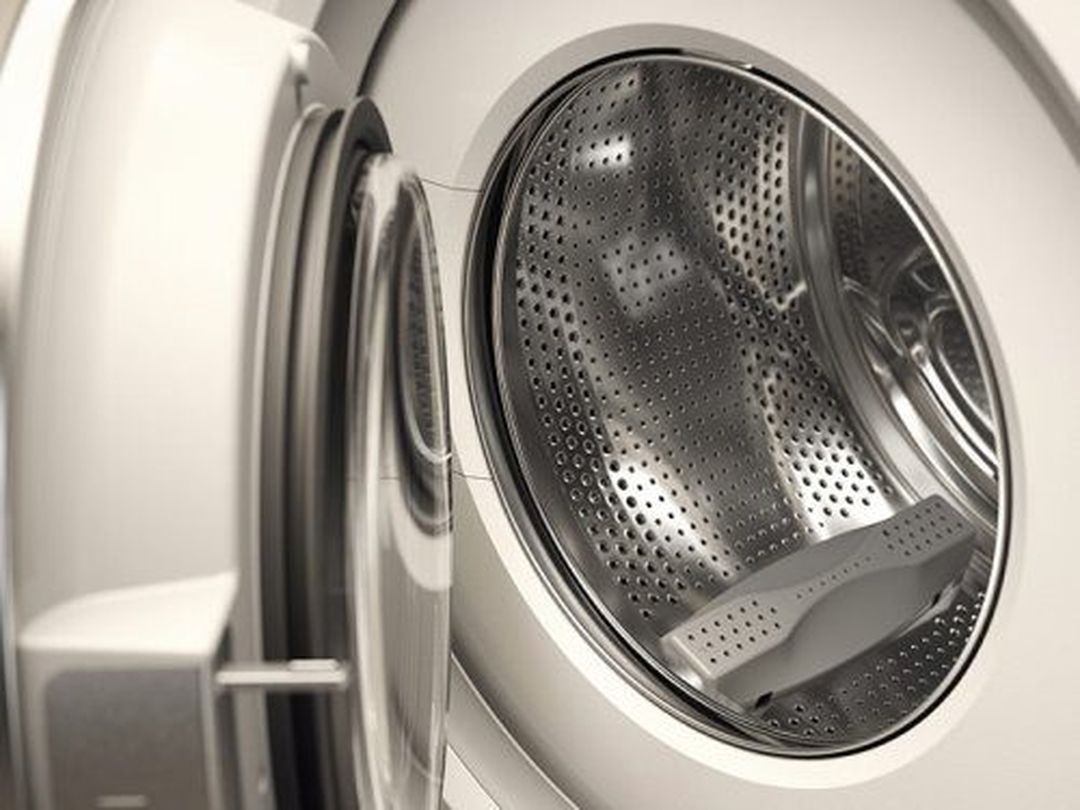

Steel Seal™
Traditional rubber bellows trap dirt and bacteria, but ASKO washing machines with Steel Seal™ eliminate this issue. Eliminating the rubber bellow ensures a hygienic wash cycle with 95% less bacterial growth, proven by a third-party institute*. The Steel Seal™ also increases durability and makes loading and unloading easier. *Compared to traditional washing machines with rubber bellow. Independant testing by Mikrobiologija Avbersek (Slovenia)

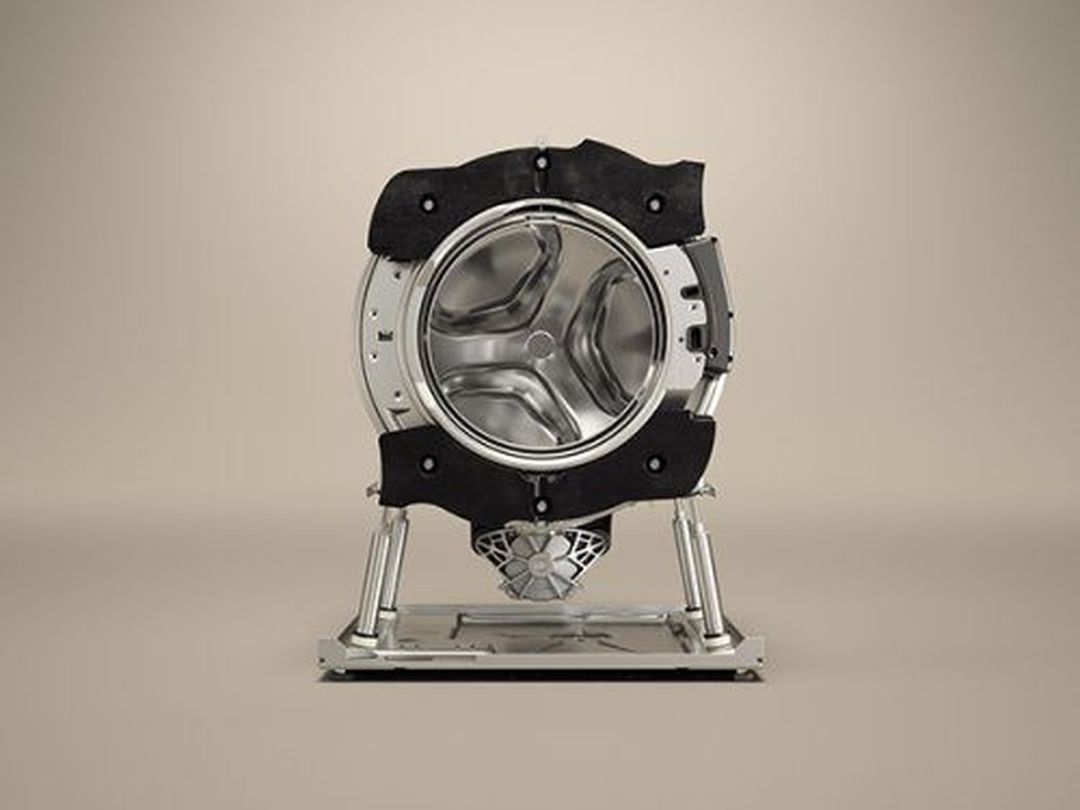

Quattro Construction™ 2.0

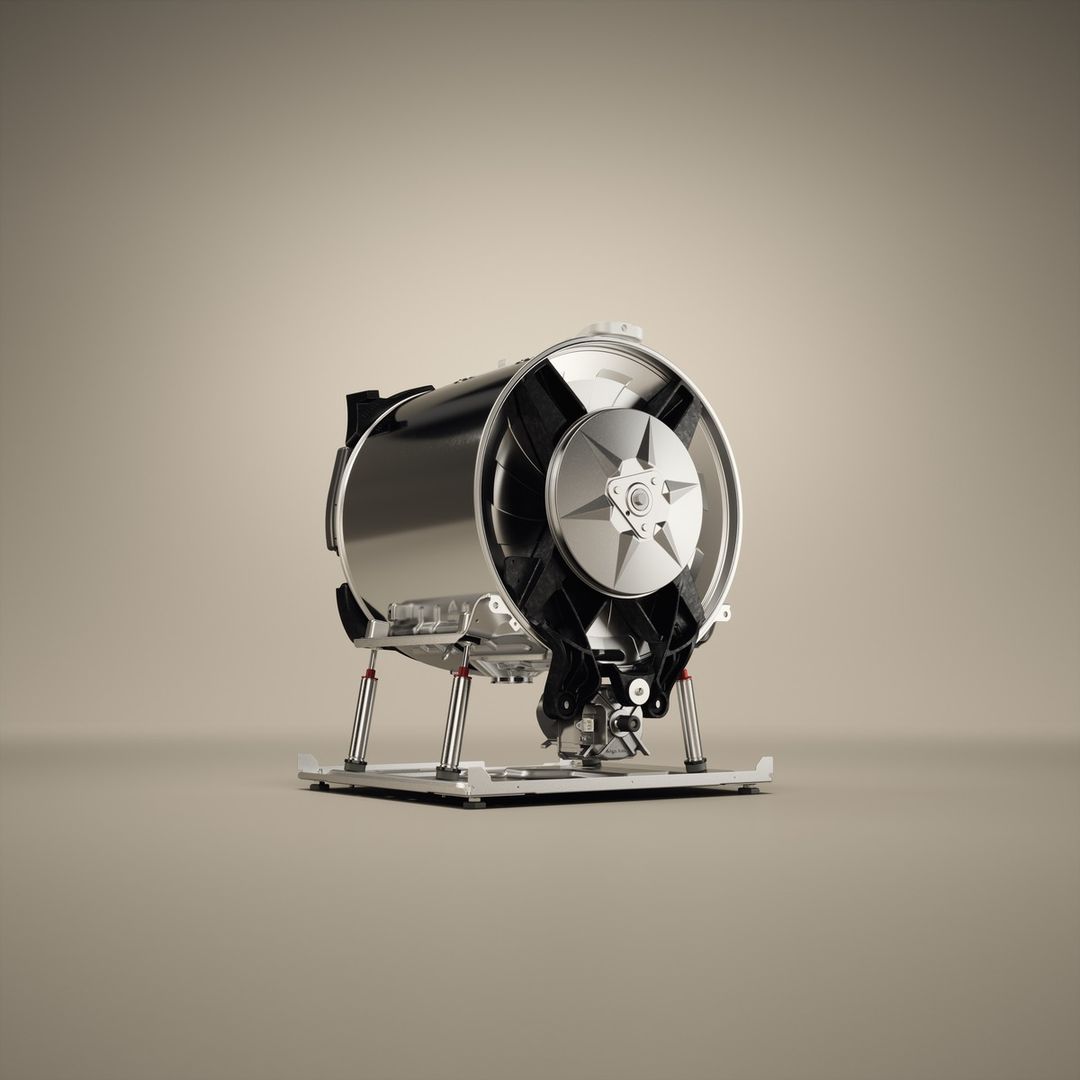

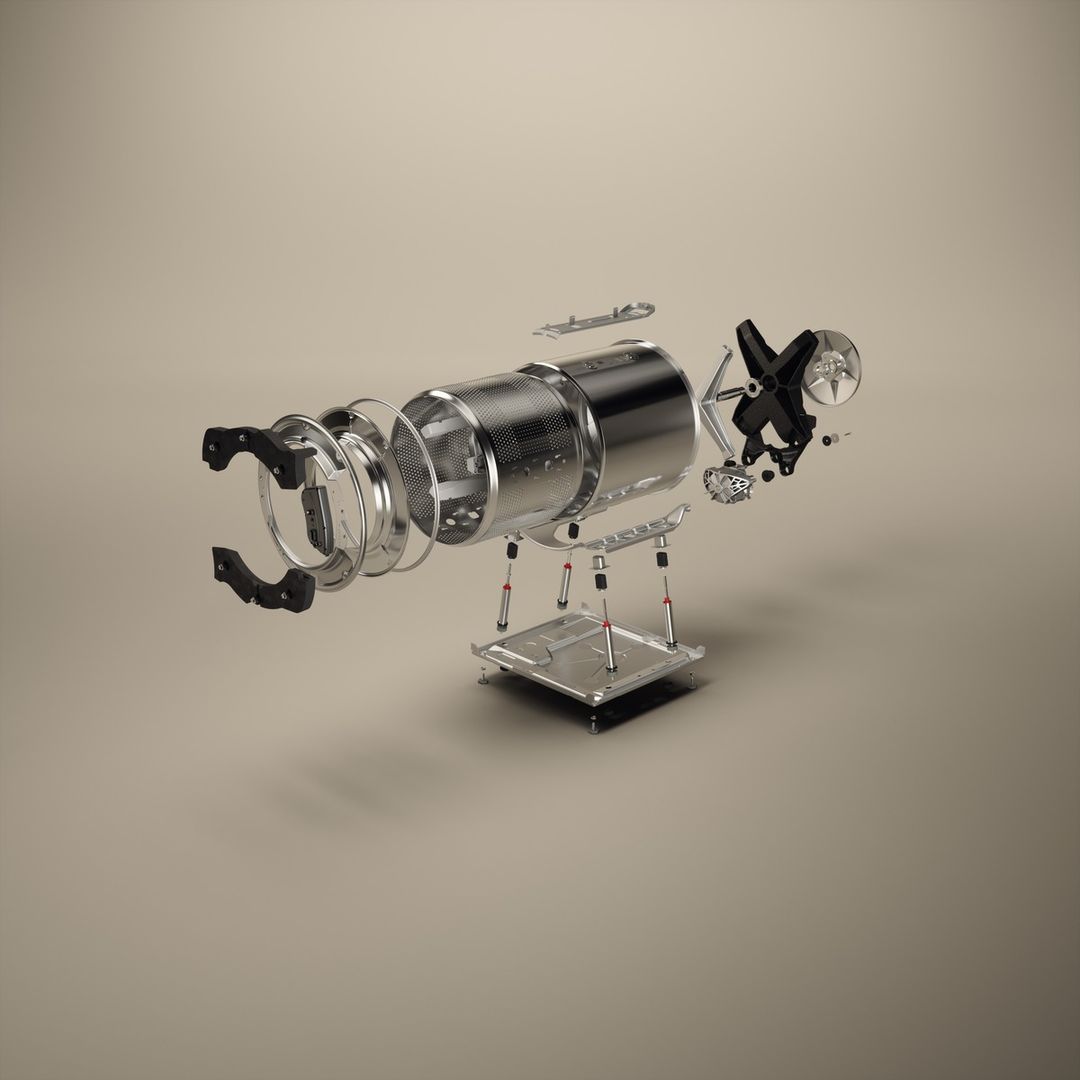

Quattro Construction™ 2.0 by ASKO significantly reduces noise and vibrations during washing and spinning. Four shock absorbers transmit vibrations from the drum to the base plate, minimizing large movements and reducing wear. Additional features include a reinforced steel base plate, a sturdy cast iron motor mount, and a motorized door lock.

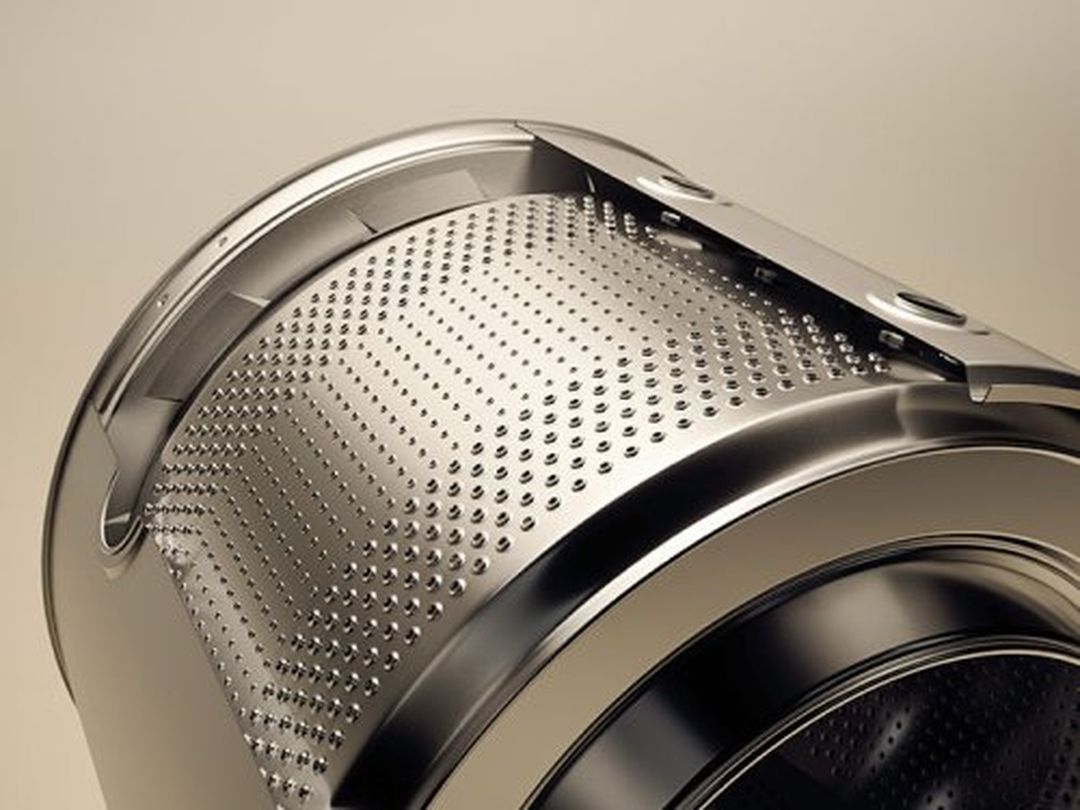

Stainless inner and outer drum
ASKO washing machines use high-quality stainless steel for both inner and outer drums, unlike cheaper models with plastic that attracts dirt and ages quickly. This material allows higher spin speeds, withstands high temperatures, and helps disinfect the machine, ensuring superior performance, hygiene, and durability.
Steam disinfection
The ASKO washing machine features a steam disinfection program, allowing you to effectively wash sensitive fabrics at cold or low temperatures by adding steam before the main wash cycle. Steam also enables you to refresh clothes without visible stains, completely without detergent.
Aqua Safe™ system
Aqua Safe™ is an advanced water safety system encompassing both a sturdy construction like PEX hose and seam-welded stainless container, as well as smart systems like an anti-block drain pump, Aqua Detect sensor, and stand-by water protection.
ConnectLife connectivity
The ConnectLife app gives you smart, real-time control of your laundry appliances. It enables quick Bluetooth pairing, remote and voice control, customizable and exclusive programs, and automatic firmware updates. Users get push notifications for program completion, alarms, and maintenance, plus direct access to manuals and troubleshooting.

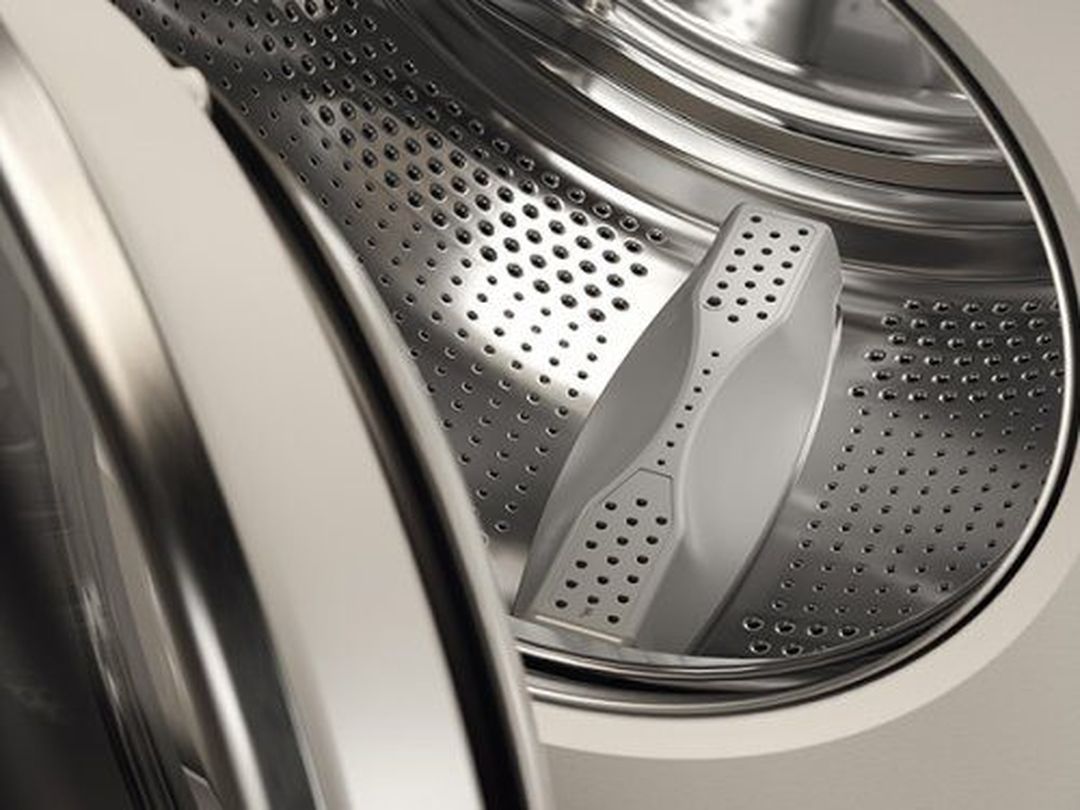

Active Drum™
All ASKO washing machines feature the unique Active Drum™, which ensures optimal cleaning and fabric care. The hourglass-shaped lifters guide the load to the gentler central area of the drum and effectively remove large debris, such as dirt and gravel, to the larger holes at the edge of the drum.

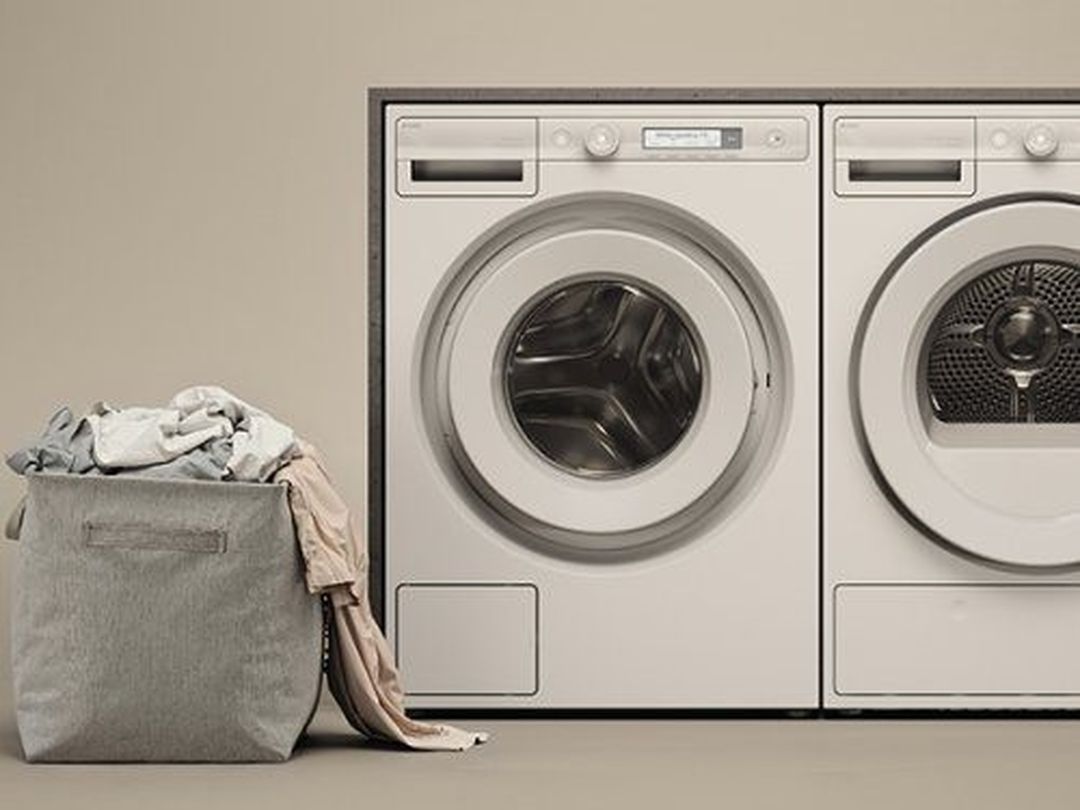

Sensi Save 2.0
Sensi Save 2.0 is an eco-friendly innovation from ASKO that adapts the wash cycle based on the load size and fabric type. This technology enables ASKO washing machines to deliver beautifully clean clothes while using the least amount of water and energy possible. It also saves time, as the wash cycle lasts only as long as necessary.
Quick Pro programme
The Quick Pro program is for those who think washing machines are too slow. Still high performing, the programme uses gentle tumbling and a lower spinning rate, finishing within an hour.
Article no. | 745664 |
EAN code | 3838782945267 |
Product category | Washing machines for domestic use |
Type | W3114CXLW |
Line | Logic |
Series | Series 3 |
Appliance type | Steel Seal™ Washing machine |
Loading type | Front load |
Door hinge placement | Left |
Main colour | White |
Loading capacity | 11 kg |
Programmes | Standard cotton, Time program, Mix/synthetic, Wool/hand wash, Delicates, White laundry, Colored laundry, Outerwear |
Special washing programs | Quick Pro, Steam refresh, Eco 40–60 °C, SportWash |
Special functions | Drum cleaning, Spin, Drain, Rinse |
Wi-Fi washing programs | Jeans, Waterproof clothing, Shirts / Blouses, Beddings / Towels, Down |
Modes | Normal - No changes to the program, Green - Saves water and energy (program time slightly longer), Speed mode - More water and energy used to ensure a clean laundry in shorter time |
Temperature range | Cold – 90 °C |
Spin speed setting | Adjustable |
Max spin speed | 1400 rpm |
Delayed start | Up to 24 hours |
Settings | Prewash, No spin, High water level, Super rinse, Small load option, Steam disinfection, Add clothes, Delayed Start |
Door sealing | Steel Seal™ - Hygienic sealing without rubber bellow |
Quattro Construction™ | Yes, 2.0 Professional suspension with motorized door lock to minimize noise and vibrations |
Outer drum | Stainless Steel |
Inner drum | Stainless Steel |
Counter weight material | Cast iron |
Counterweight | 17 kg |
Active Drum™ | Yes - ensures a gentle yet effective washing cycle |
Max +/- 1 °C temperature variation | Yes |
Drum size | 80 l |
Door opening diameter | 310 mm |
Door maximum opening angle | 110° |
Motor | Long life and quiet brushless motor |
Shortest program time | 20 min |
Easy Close door | Yes |
Easy door opening | Yes |
Door lock | Motorized |
Stop flap for liquid detergent | Yes |
Automatic detergent drawer cleaning | Time remaining indicator |
Dose assist | Yes |
Number of programmes | 21 |
Create own program | Yes |
Included accessory | Adapter for water connection 1, Discharge hose bow |
Waterproof bottom plate with leakage detection | Yes |
Maximized water inlet time | Yes |
Water inlet hose | Reinforced rubber hose |
Drain system | Anti Block™ - Self-cleaning drain pump |
Overflow protection | Yes |
Emergency door opening function | Yes |
Child lock on display | Yes |
Unbalance detection | Yes - protects the washer against harmful vibrations |
Draining capacity | 20 l/min |
Overheat protection | For motor and electronics |
Easy mounting of ASKO dryer on top | Yes |
Adjustable feet | 10 mm |
Width | 595 mm |
Height | 850 mm |
Depth | 687 mm |
Depth with door open | 1129 mm |
Net weight | 99.8 kg |
Noise spinning class | A |
Spinning performance class | B |
Energy label program time | 211 min |
Length inlet hose | 150 cm |
Length outlet hose | 160 cm |
ISO 14001 certified manufacturing | Yes |
Packaging width | 636 mm |
Packaging height | 920 mm |
Packaging depth | 776 mm |
Gross weight | 103.2 kg |
Weight of packaging | 3.4 kg |
Type of display | LCD |
Remaining time indication | Yes |
Available languages in control unit | Swedish, Slovenian, Slovak, Russian, Polish, Norwegian, Dutch, Latvian, Lithuanian, Japanese, Italian, Croatian, French, Finnish, Estonian, Spanish, English, German, Danish, Czech, AU English, Portuguese, Serbian, Ukrainian, US English |
Wifi | Yes |
Smart app control | ConnectLife |
Bluetooth | Yes |
Energy efficiency class | A |
Energy consumption per cycle (Eco 40–60 °C) | 0.38 kWh |
Heater power | 2000 W |
Connected load | 2200 W |
Voltage | 220-240 V |
Number of phases | 1 |
Fuse | 10 A |
Frequency | 50 Hz |
Plug type | Euro |
Length of electrical cord | 2100 mm |
Water consumption per cycle (Eco 40–60 °C) | 49 l |
Remaining moisture content | 48% |
Water connection | Size 3/4" - can be connected to cold water |
Power consumption in off-mode | 0.49 W |
Consumption in standby mode | 0.49 W |
