Features

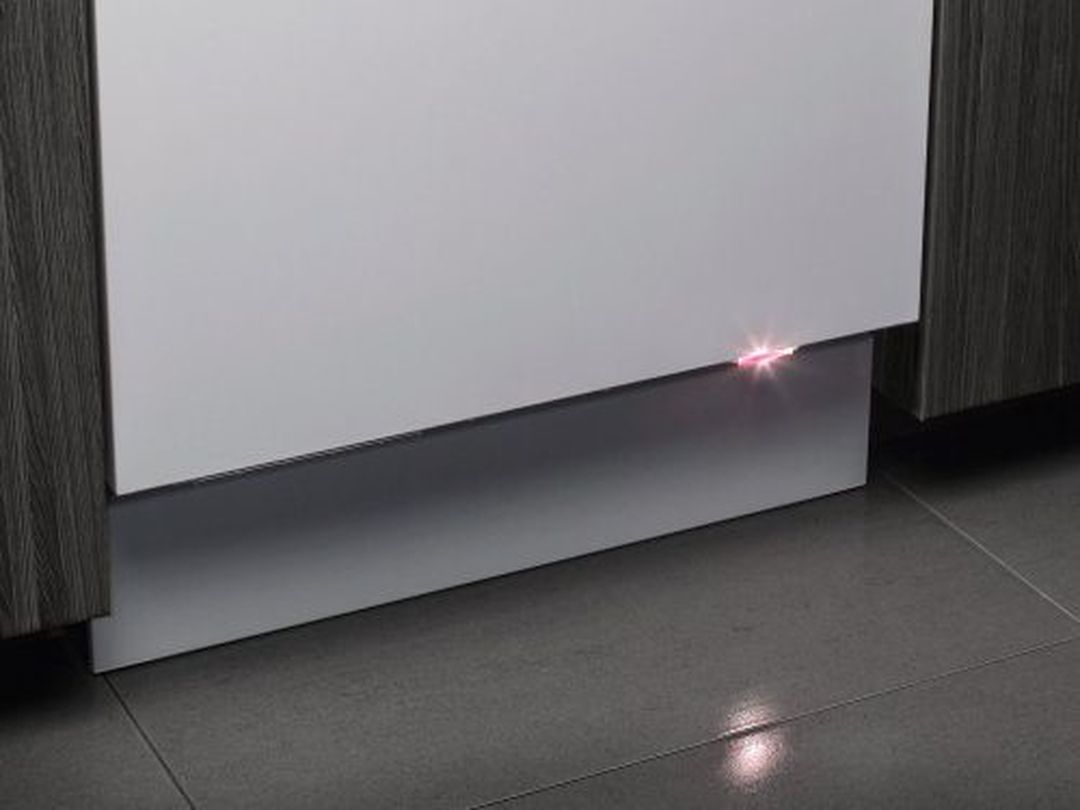

Status light

A small light placed in the bottom right corner indicates the current status of a program with three colours: Blue tells you when you can still open the door to load more items, red tells you when it’s too late to do so and green tells you when the dishes are ready. The Status Light™ can be either face-on or as a spot on the floor.

SCS - Super Cleaning System™

Our unique and improved Super Cleaning System (SCS) is an intelligent feature that will save you time, electricity, water and effort. With this patented cleaning system you don’t need to rinse your dishes before putting them into your dishwasher. SCS cleans the fine filter and all the interior surfaces after pre-wash, before running the main wash. This means that the wash starts with rinsed dishes, a clean machine, an empty filter and fresh, and clean water.

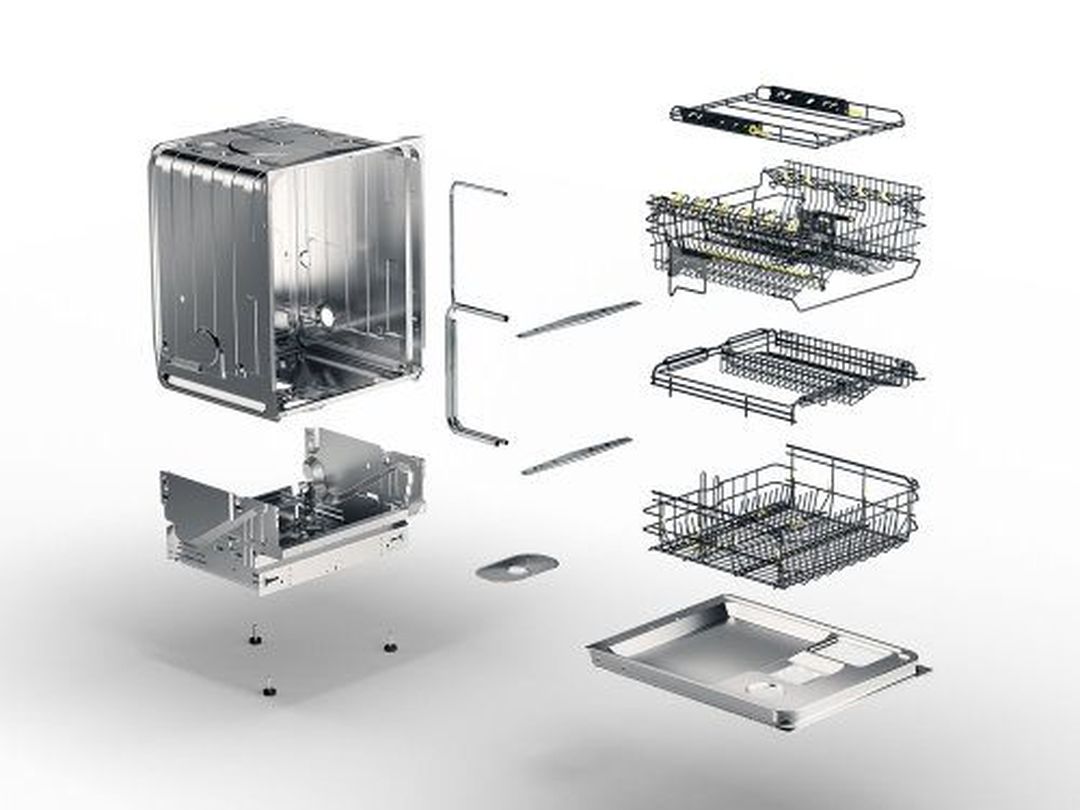

8 Steel™

No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.

Specifications

Construction and performance

Use and flexibility

Number of place settings: 14 pcs

Number of baskets: 3

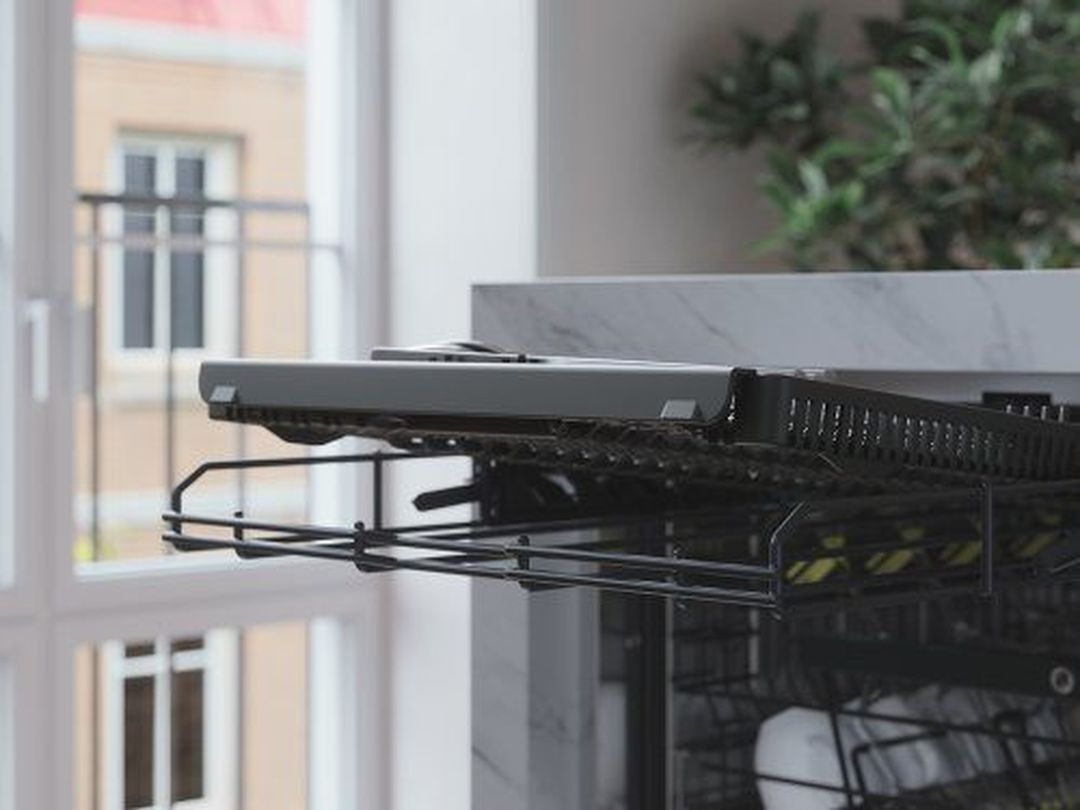

Top tray

• Easy height adjustment

• Handle

• Removable

Upper basket type: Premium - Basket wiring in steel, fixed pin rows and foldable wine shelves

Upper basket system: Switch wheels

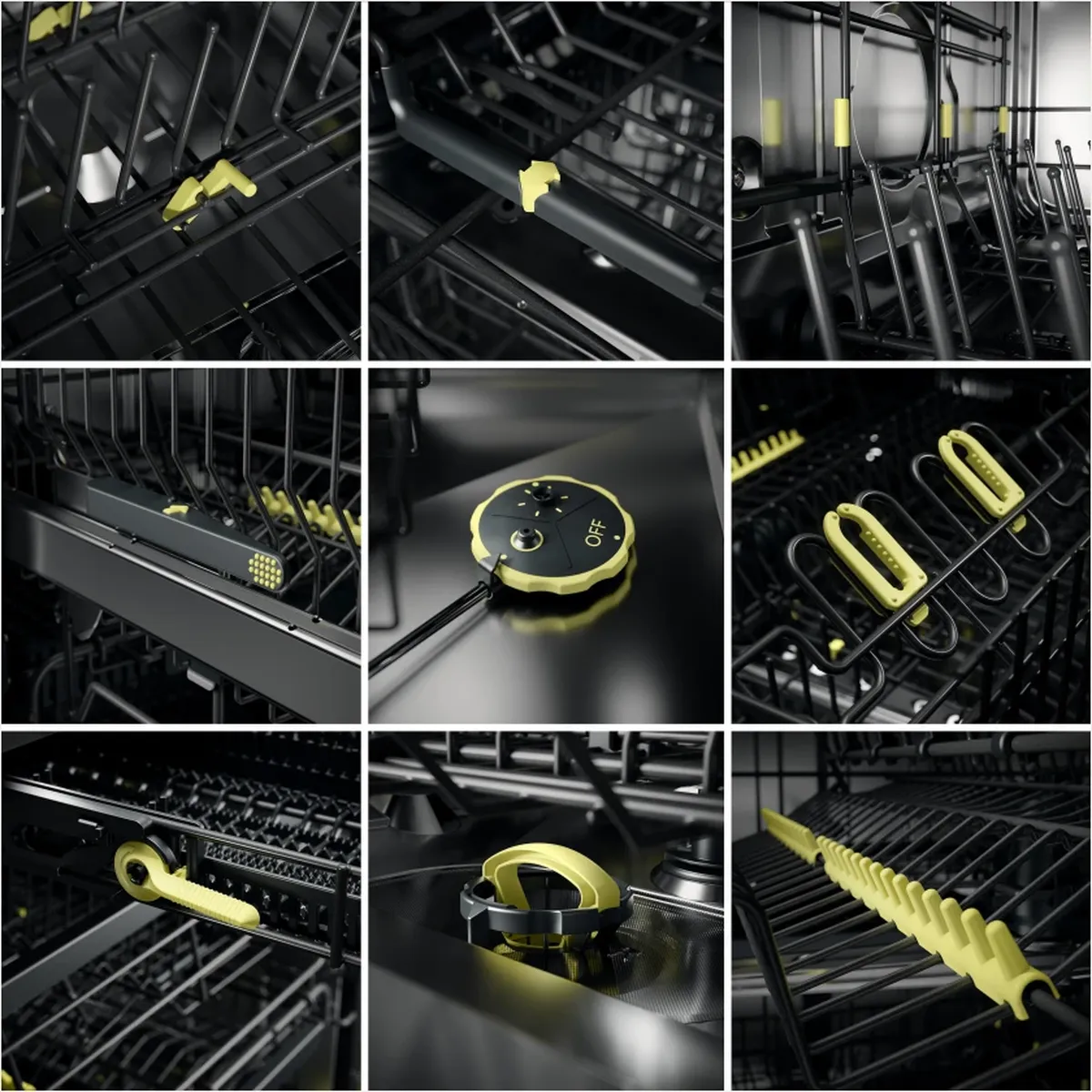

Upper basket

• Small distance between the basket threads - makes loading easy and prevents small items to fall through

• Handle with plastic logotype

• Foldable wine shelves to left

• Foldable wine shelves to right

• Fixed pin rows

• Fixed glass support

• Standard knife stand

Middle basket: Without middle basket

Lower basket type: Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket

Lower basket

• Small distance between the basket threads - makes loading easy and prevents small items to fall through.

• Handle with plastic logotype

• Foldable/divisible rear pin row

• Cutlery basket

Automatic dosing system: No

Interior light: No

Interaction and control

Wifi: No

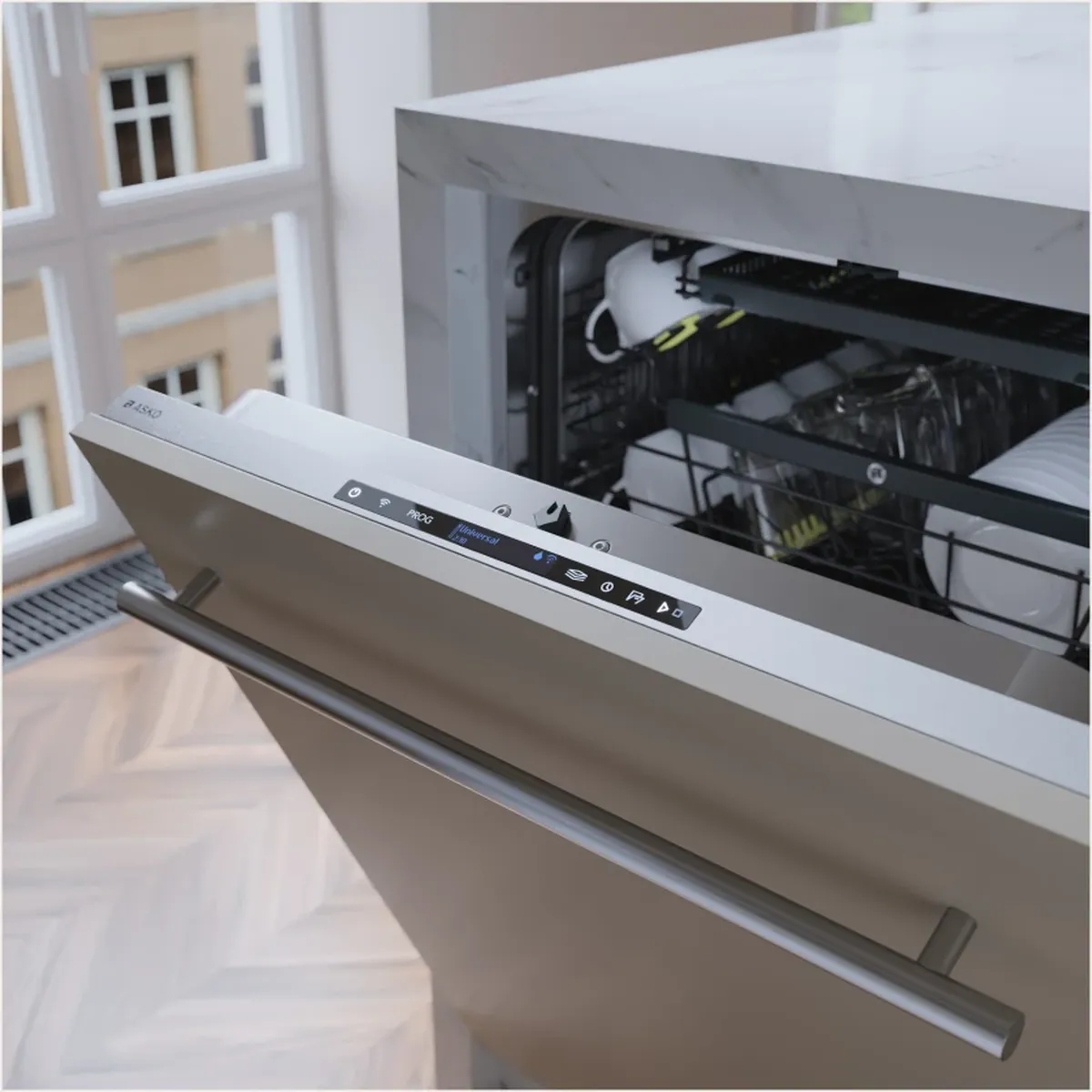

Type of display: LCD display

Status Light™ - Visual indication of dishwashing progress: Yes, spot on floor

Remaining time indication: Yes

Wash end indication: Displayed with sound and light

Available languages in control unit

• Ukrainian

• Swedish

• Serbian

• Slovenian

• Slovak

• Russian

• Portuguese

• Polish

• Norwegian

• Dutch

• Latvian

• Lithuanian

• Japanese

• Italian

• Croatian

• French

• Finnish

• Estonian

• Spanish

• English

• German

• Danish

• Czech

Functions, programs and modes

Programs

• Quick wash

• Intensive program

• ECO wash

• Hygiene wash

• Time program

• Rinse and hold programme

• Universal programme

• Self cleaning

• Anti odour

Main wash temperature (°C): 50/60/65/70

Delayed start: Possible to delay up to 24 hours

Options and modes

• Night mode - Lower noise level. The program time is extended.

• Speed mode - The program time is shortened. More energy is used.

• Time set

• Super Rinse™ - Two extra rinses

• Enable/disable automatic door opening

Design and integration

From the front adjustable door spring: Yes

From front adjustable rear foot: Yes

Installation

• Velcro strips for easy mounting and adjustment of the separate custom door

• Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation

• Steam protection strip

Sliding door: No

Possible to install elevated: Yes

Custom door size: Custom door size 680-760

Min. niche width: 600 mm

Min. niche height: 820 mm

Depth (incl. wall spacing): 555 mm

Max Height adjustment: 53 mm

Adjustable kick plate: No

Safety and maintenance

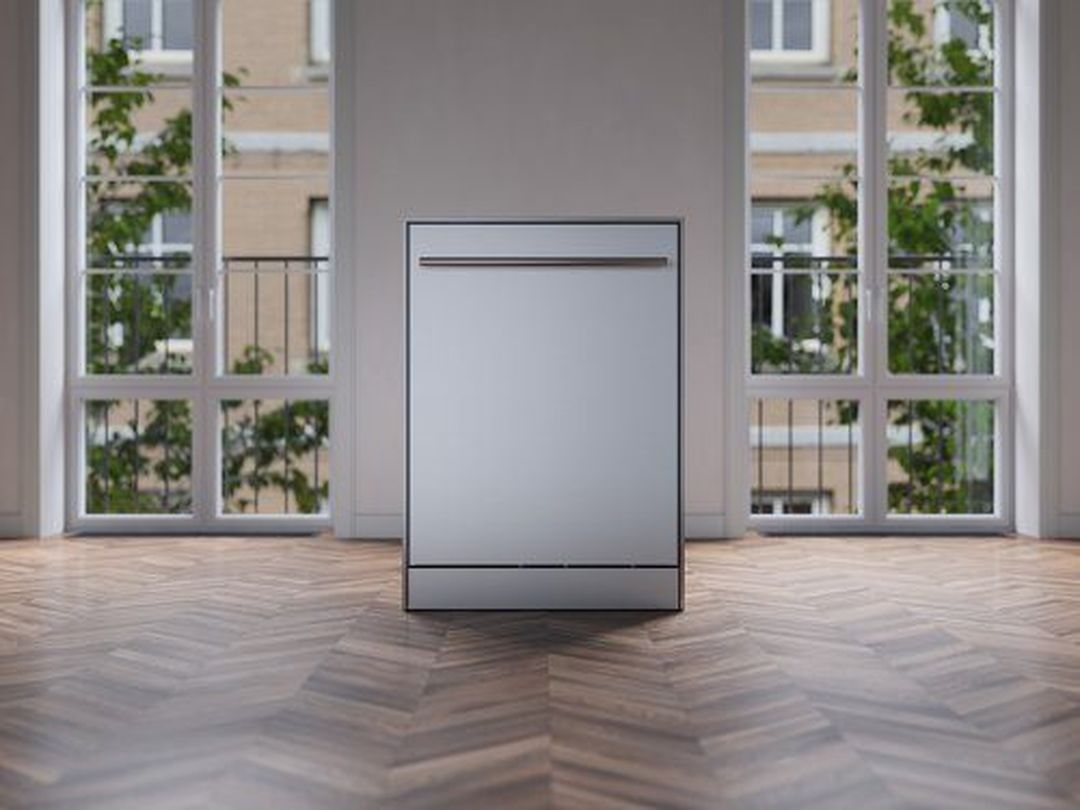

Aqua Safe™

• Anti Block™ - Self cleaning drain pump

• Light and sound alarm

• Maximum time for water intake

• Stand-by water protecion - Leakage detection when machine is off

• Aqua Level™ Sensor - Ensures an optimized water level

• Aqua Detect™ - Instant recognition of any leakage in the motor compartment

• Detection of water leakage on the bottom plate

• Waterproof bottom plate

• Extra durable stainless steel container

• Sealing points outside container

Aqua Safe™ system: Yes

Child safety: Kid Safe™ - Lockable controls

Indication of low level of rinse-aid: Notification in display

Salt refill indicator: Notification in display

Technical data

Water connection: Hot&cold water

Adapter for water connection: 1/2

Max. temperature of inflow water: 70 °C

Noise level (max) dB(A): 42

Reference programme: 1

Energy label program time: 275 min

Energy consumption per cycle for the Eco program 40-60 °C: 0.54 kWh

Water consumption per cycle for the Eco program: 9.4 l

Consumption in standby mode: 0.49 W

Energy efficiency class: A

Plug type: Euro

Connected load: 1900 W

Voltage (V): 220-240 V

Number of phases: 1

Fuse: 10 A

Frequency: 50 Hz

Required inlet water pressure MPa: 0,3-1

Net weight: 39 kg

Noise class: B

Energy Efficiency Index (EEI): 31.8

Cleaning performance: 1.121

Drying performance: 1.061

Start delay (W): 3.99

Energy consumption per 100 cycles: 54 kWh

Dimensions

Width: 596 mm

Height: 819 mm

Depth: 554 mm

Maximum product height: 872 mm

Length of electrical cord: 1730 mm

Depth with door open: 1191 mm

Length inlet hose: 175 cm

Length outlet hose: 200 cm

Logistic information

Packaging width: 640 mm

Packaging height: 890 mm

Packaging depth: 680 mm

Gross weight: 42.3 kg

Product code: 746021

EAN code: 3838782986727
